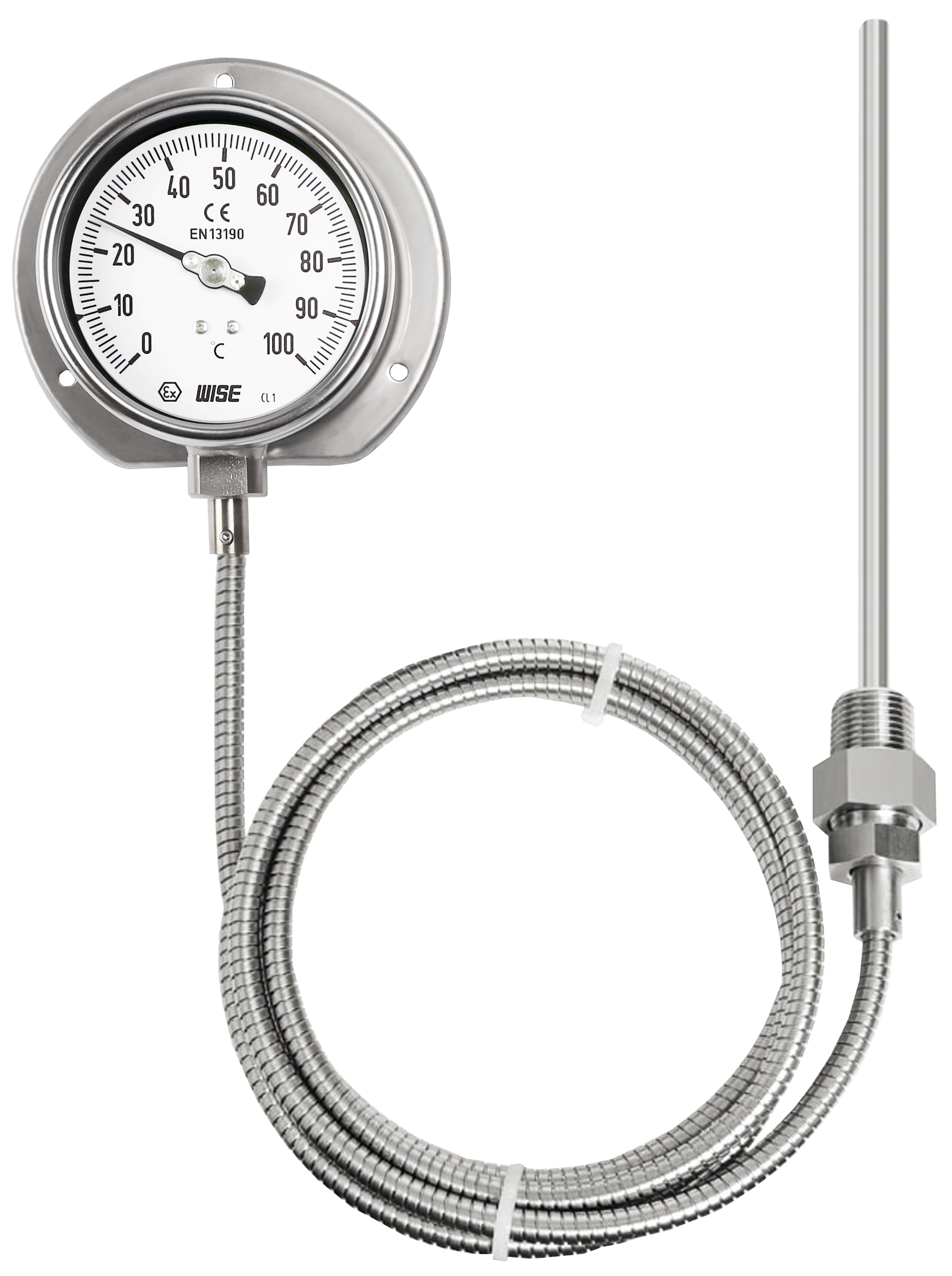

T230 RREMOTE READING THERMOMETER ( DIN TYPE)
Abbildung kann vom Original abweichen
Hersteller WISE-CONTROL
 |
Liquid filled thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries- operated in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.
Beschreibung
This thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries. It operates in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.
| Nominal diameter | 100 and 160 mm |
| Accuracy | ±2.0 % of full scale |
| Measuring system (SAMA class ⅢB) | Organic gas : 0 ~ 200 °C Inert gas : -200 ~ 700 °C |
| Working range | Maximum scale value |
| Degree of protection | EN60529/IEC529/IP67 (100 mm) |
| Location of stem and mounting | Bottom connection, surface, case mounting Lower back connection, flush, case center mounting |
| Case | 304SS |
| Cover | 304SS Bayonet type |
| Window | Tempered safety glass |
| Capillary | Capillary : 1.6/0.2 mm, 316SS Armored : 7.5/5.5 mm, 304SS |
| Dial | White aluminium with black graduations |
| Pointer | Black painted aluminium alloy |
| Stem | 8.0, 10.0 and 12.0 mm 316SS and 316L SS |
| Stem, process connection | ⅜", ½", ¾" PT, NPT and PF |
| Option | ±1.0 % of full scale Window : Safety glass Special range : 0 ~ 700 ℃ |
| Hersteller |  |
Alle Funktionen und technischen Daten können ohne Ankündigung geändert werden, Lieferung vorbehaltlich Verfügbarkeit,Korrektur von Irrtümern und Auslassungen vorbehalten.
