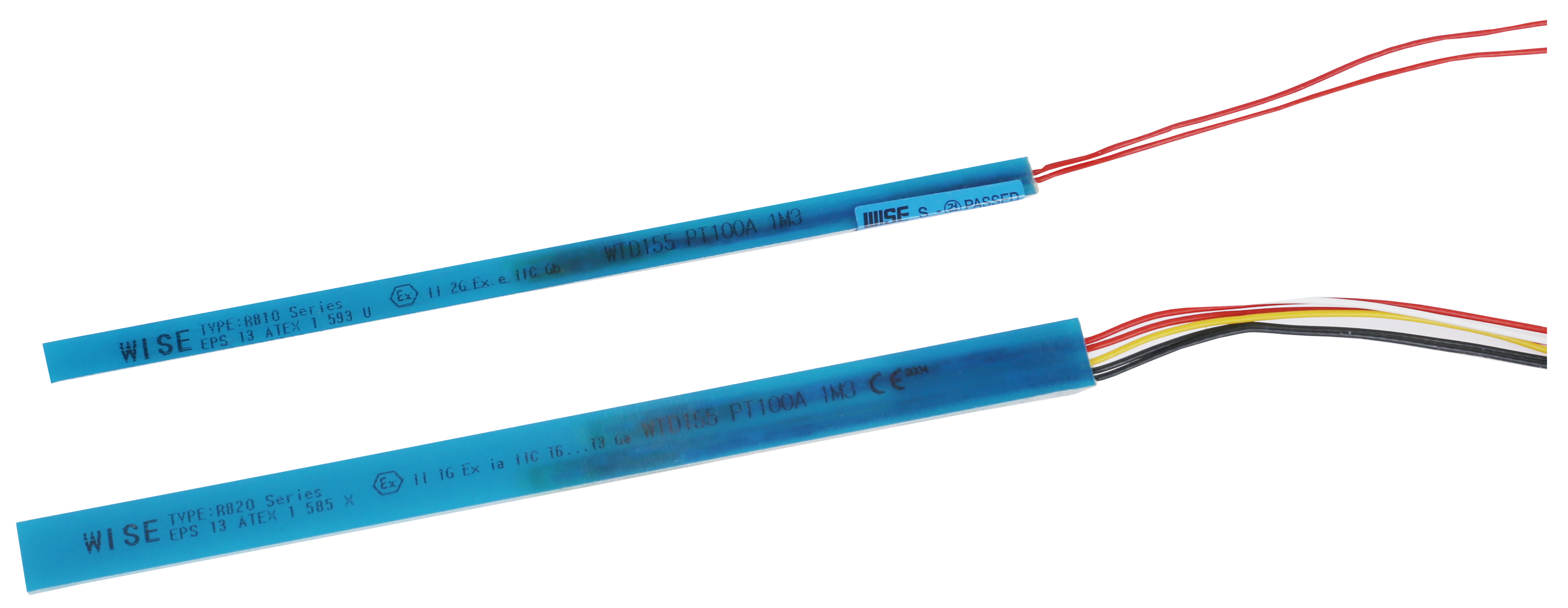

R830 series general type stator winding RTD R831, R832, R833, R834, R835, R836, R837, R838
Product image may differ from original
Manufacturer WISE-CONTROL
The purpose of the stator winding RTD is to mainly detect and prevent overheating of motors. It is inserted between a stator and a slot to measure a temperature. Stator winding RTD uses the phenomenon of changing electric resistance to measure a temperature. Since it has high stability and sensitivity, it is used to measure a temperature precisely. Furthermore, it is made of a nonmetallic material, and, therefore, it has a structure of protecting element. It is designed well enough to get flexibility and to endure vibration and high pressure.
Description
The purpose of the stator winding RTD is to mainly detect and prevent overheating of motors. It is inserted between a stator and a slot to measure a temperature. Stator winding RTD uses the phenomenon of changing electric resistance to measure a temperature. Since it has high stability and sensitivity, it is used to measure a temperature precisely. Furthermore, it is made of a nonmetallic material, and, therefore, it has a structure of protecting element. It is designed well enough to get flexibility and to endure vibration and high pressure.
| Body material | High temperature epoxy glass |
| Temperature limit | Class F : 155 ℃ (311 ℉) Class H : 180 ℃ (356 ℉) |
| Lead wires | 3 wire or 4 wire, copper, AWG #22 (With FEP or polyimide insulation) |
| Ambient temperature | Tamb = -50 ~ 180 ℃ |
| Working temperature | -50 ~ 180 ℃ |
| Manufacturer |  |
All features and specifications subject to change without notice, delivery subject to availability, correction of errors and omissions excepted.
