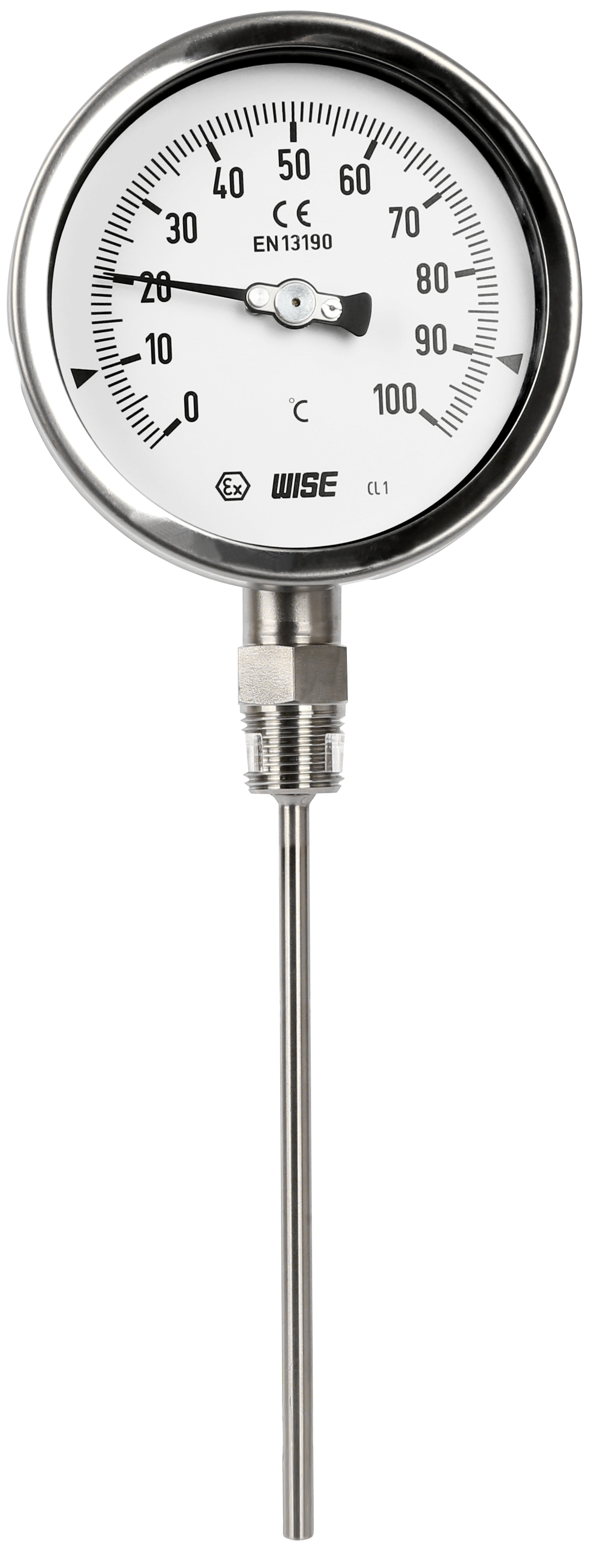

T120 PROCESS INDUSTRIAL BIMETAL THERMOMETER WITH STEEL CASE
Product image may differ from original
Manufacturer WISE-CONTROL
Bimetal thermometer is used for measuring temperature of gas or fluid. It is suitable for measurement, regulation, and direct monitoring for the fluid. It meets the most stringent criteria on resistance to a corrosive atmosphere and exceptional climatic circumstances.
Description
Sanitary bimetal thermometer is used for measuring temperature of corrosive and contaminated materials. Its usage expands to food, beverage, biochemical and pharmaceutical industry.
| Nominal diameter | 75 and 100 mm |
| Accuracy | ±2.0 % of full scale |
| Temperature element | Coiled bimetal |
| Working range | Maximum scale value |
| Degree of protection | EN60529/IEC529/IP65 (100 mm) |
| Location of stem | Bottom connection, direct |
| Case | 304SS |
| Cover | 304SS |
| Window | Glass |
| Dial | White aluminium with black graduations |
| Pointer | Black painted aluminium alloy |
| Stem | 6.0, 6.4, 8.0 and 10.0 mm diameter 304SS, 316SS and 316L SS Max. Insertion length : 2,000 mm |
| Zero adjustment | Internal |
| Stem, process connection | ¼", ⅜", ½", ¾" PT, NPT and PF |
| Option | ±1.0 % of full scale |
| Manufacturer |  |
All features and specifications subject to change without notice, delivery subject to availability, correction of errors and omissions excepted.
