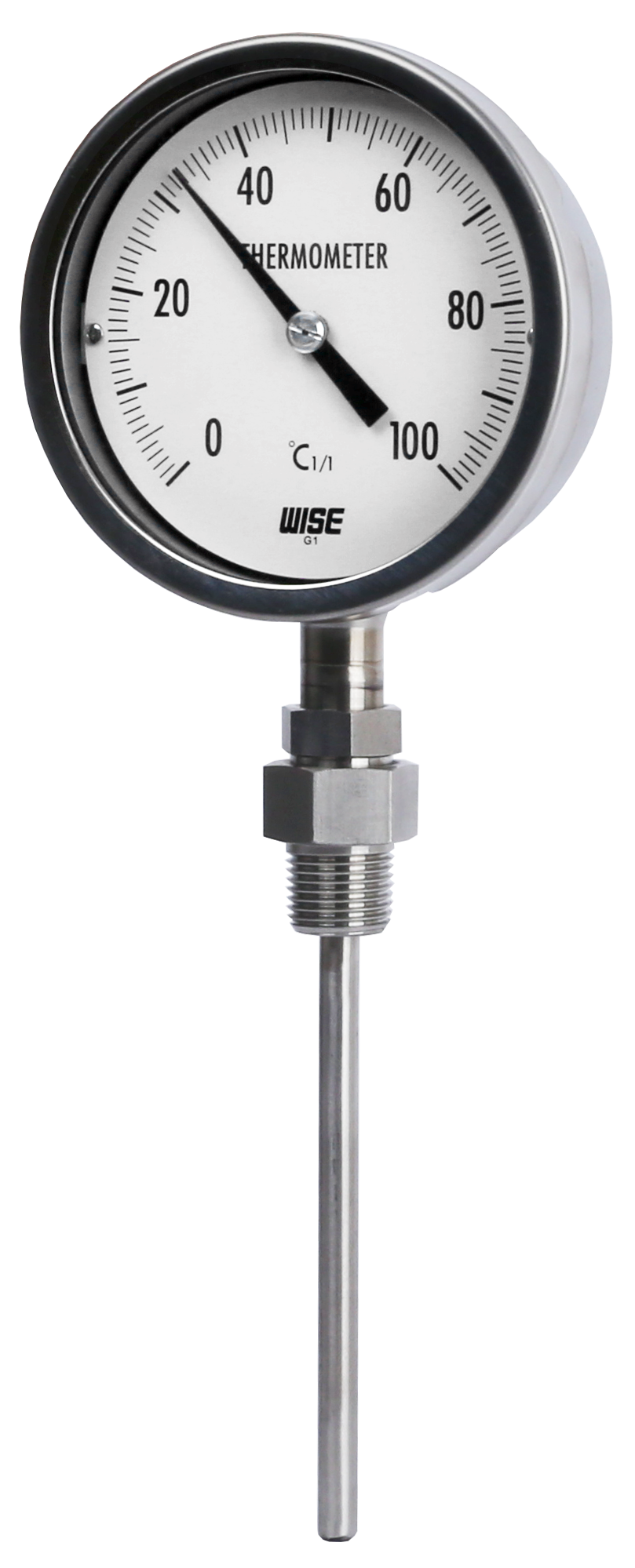

T220 DIRECT READING THERMOMETER
Product image may differ from original
Manufacturer WISE-CONTROL
This thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries. It operates in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.
Description
This thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries. It operates in aggressive and non-aggressive environment. Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.
| Nominal diameter | 100 and 150 mm |
| Accuracy | ±2.0 % of full scale |
| Measuring system (SAMA class ⅢB) | Organic gas : 0 ~ 200 °C Inert gas : -200 ~ 700 °C |
| Working range | Maximum scale value |
| Location of stem | Bottom connection, direct Lower back connection, direct |
| Case | 304SS |
| Cover | 304SS |
| Window | Tempered safety glass |
| Dial | White aluminium with black graduations |
| Pointer | 304SS, Black painted |
| Stem | 8.0, 10.0 and 12.0 mm 316SS and 316L SS |
| Zero adjustment | Internal |
| Stem, process connection | ⅜", ½", ¾" PT, NPT and PF |
| Option | ±1.0 % of full scale |
| Manufacturer |  |
All features and specifications subject to change without notice, delivery subject to availability, correction of errors and omissions excepted.
